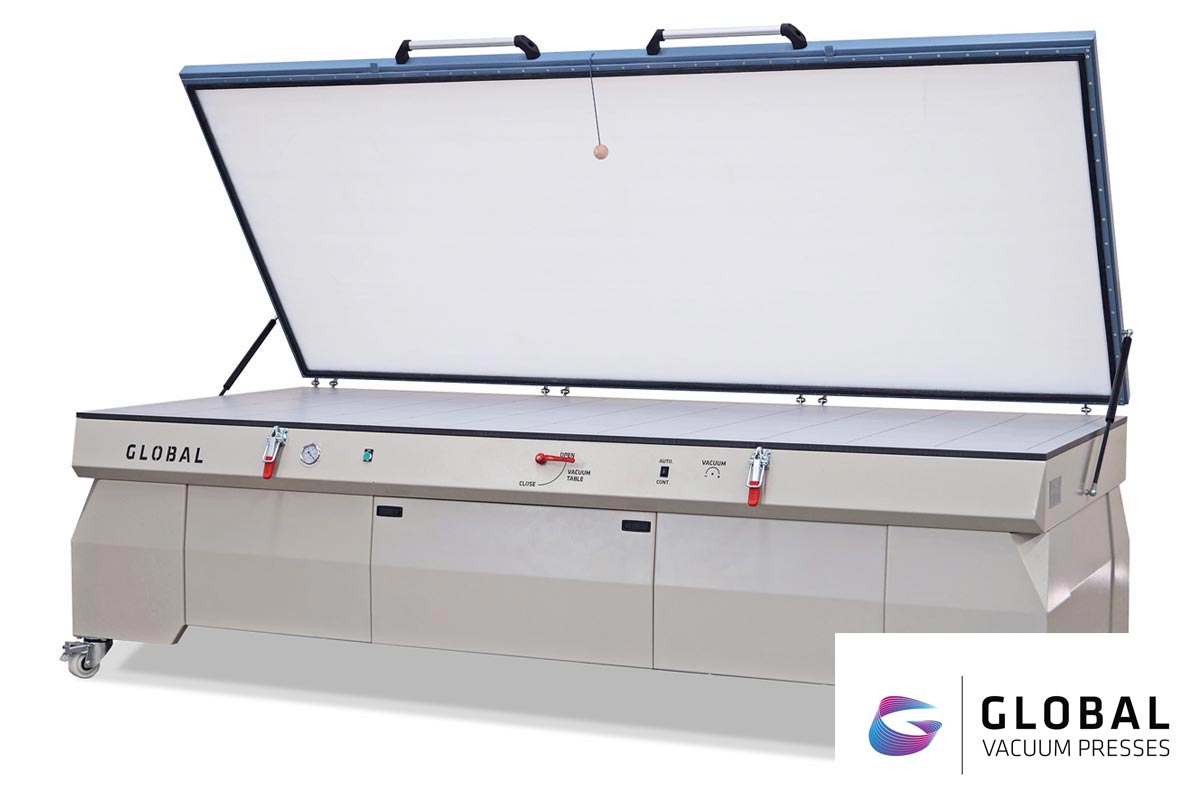

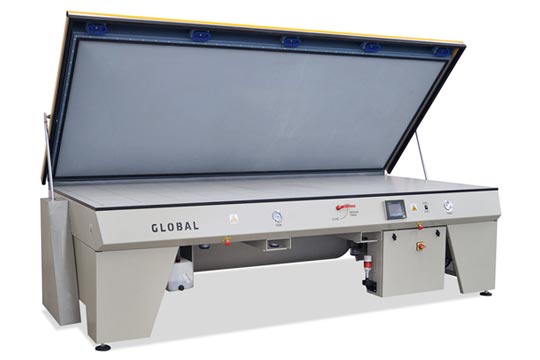

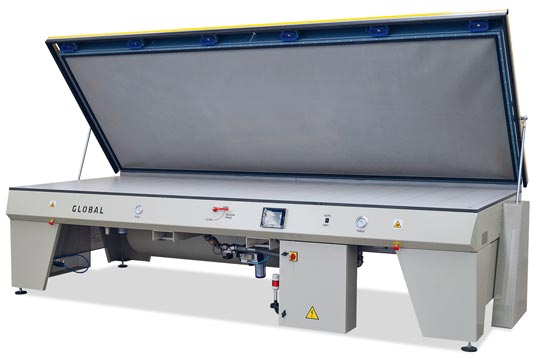

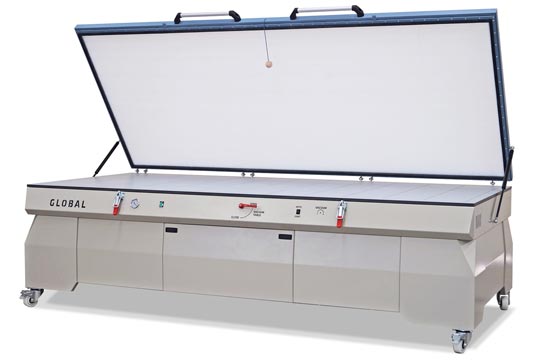

Vacuum Membrane Press - Industrial - VMP-I
Today's demands on modern vacuum presses are not only restricted to woodworking. There are numerous new materials with new areas of application in the aerospace, automotive, furniture, thermoplastic and shopfitting industries. For this purpose Global developed a reliable and robust vacuum press that fully meets the requirements of professional 3D thermoforming. Woodworking and new composite material press applications. A closed, extra-stiff chassis and very large vacuum pumping capacities offer ideal conditions for permanent use in day to day business. For more information please contact us.
Product Information
- Usable for thermoforming and woodworking.
- Developed for industrial and serial production
- Rotary van vacuum pump, oil and maintenance free
- Switch for continuous or automatic vacuum pump mode
- Max. vacuum pressure 9t/m²
- 18mm HPL Compact press board with up to 56 suction points
- Available with flat natural rubber membrane (grey). 2mm thick and heat resistant up to 100°C
- Available with silicone rubber membrane, 2mm thick (translucent) and heat resistant up to 230°C
- High volume membranes available (PU/SR)
- Optional with heavy duty plastic wheels
- Optional vacuum tank with 500 Litres
- Power requirements 4 kW
- 380V, 3 phase Supply
Product Specification
| Code | Vacuum Pump | Press Capacity 1| Membrane | Membrane Heights | Max. Pressing Height 2 | |
|---|---|---|---|---|---|
| VMP-I-2513 | 140m³/h | 2540 x 1290 mm | NR/SR/PU | 0 / 250 / 500 mm | 400 - 800 mm |
| VMP-I-3113 | 140m³/h | 3140 X 1290 mm | NR/SR/PU | 0 / 250 / 500 mm | 400 - 800 mm |
| VMP-I-3713 | 140m³/h | 3740 x 1290 mm | NR/SR/PU | 0 / 250 / 500 mm | 400 - 800 mm |
NR= Natrual Rubber Membrane
PU= Polyutherane Membrane
SR= Silicone Rubber Membrane
1. Inside Dimensions of the membrane frame
2. Max. pressing height depends on the memrane and physical size of the component
