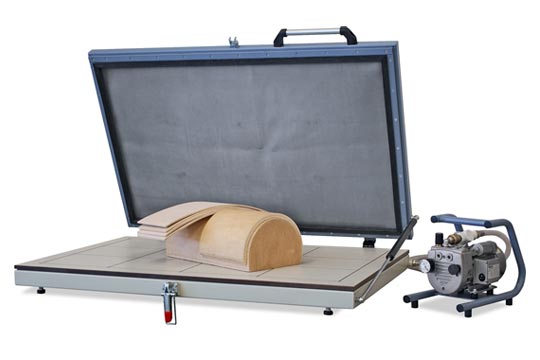

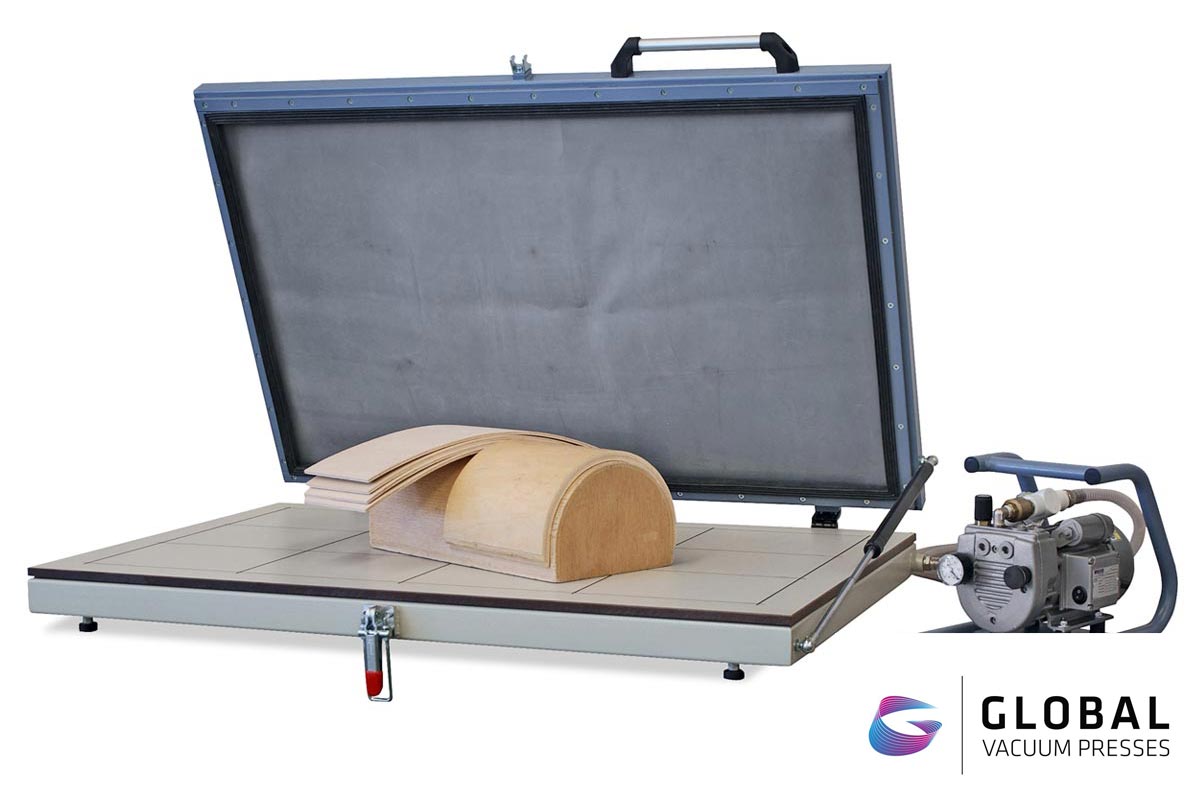

Benchtop Vacuum Membrane Press - VMP-B
The benchtop vacuum membrane press is a budget priced membrane press designed to provide the answers for an easy to use vacuum press at an affordable price without compromising quality. Take advantage of this Benchtop press which offers you an ideal solution for woodworking applications like veneering, laminating and bending wood as well as thermoforming acrylic solid surface materials, thermoplastics and similar composite materials. The benchtop vacuum membrane press is the unique way top achieve professional results with minimum effort and maximum efficiency. For more information please contact us.
Product Information
- Ideally suited for veneering, laminating and bending wood, thermoforming composite materials and many more
- Designed for individual and small production
- Rotary van vacuum pump, oil and maintenance free
- Available with or without vacuum pump
- Max. vacuum pressure 9t/m²
- 10mm HPL Compact press board with up to 6 suction points
- Available with flat natural rubber membrane 2mm thick and heat resistant up to 110°C
- Available with silicone rubber membrane (translucent) 2mm thick and heat resistant up to 230°C
- 220V, single phase
Product Specification
| Code | Vacuum Pump | Press Capacity 1 | Membrane | Effective Press Area | Max. Pressing Height 2 |
|---|---|---|---|---|---|
| VMP-B-1006-00-08 | - | 1020 x 620 mm | NR/SR | 950 x 550 mm | 400 mm |
| VMP-B-1006-00-08 | 8m³/h | 1020 x 620 mm | NR/SR | 950 x 550 mm | 400 mm |
NR= Natrual Rubber Membrane
SR= Silicone Rubber Membrane
1. Inside Dimensions of the membrane frame
2. Max. pressing height depends on the memrane and physical size of the component
