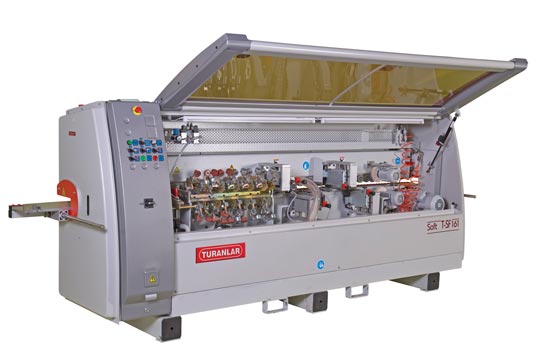

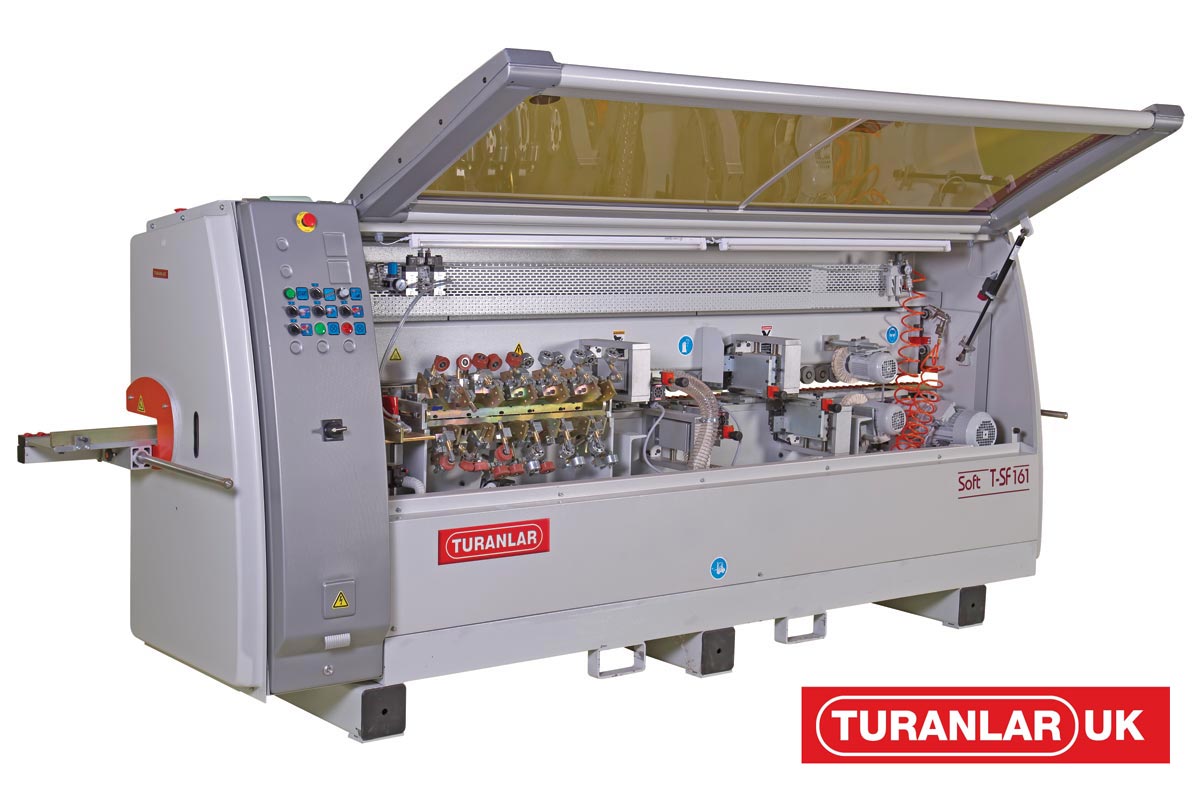

Throughfeed Softforming - T-SF-161
The T-SF-161 Throughfeed Softforming machine is a single-side track fed machine. It is an ideal solution for standard soft edge application and soft door edging. The T-SF-161 does not apply glue itself; the operators must use a pre-glued tape that is activated by the heating unit on the machine. This size throughfeed softformer is ideal for SME businesses which have a requirement for softforming but do not have the requirement for full production. The T-SF-161 comes with some standard features that you can find in our range of Turanlar UK Throughfeed postformers i.e. Carousel Station (3 Different Cartridges) speed adjustment and automated track feed system.
Product Information
In addition the components that make this machine a softformer include the following:
- Top and Bottom Trimming Units
- Suitable for "L" profiled panel/door edges
- Band Feed Table
- Grooving Saw and Top and Bottom Buffing Unit
- Hot Air Heaters
Product Specification
| Electrical Level: | 415V |
| Nominal Current: | 15 A |
| Banding Material Thickness: | 0.4-1 mm |
| Banding Material Height: | 60 mm |
| Speed: | 6, 5 m/min |
| Total Electrical Power: | 8 kW |
| Working Height: | 870 mm |
| Total Air Pressure: | 6 Bar |
| Trimmer Motor: | 2x 0, 37 kW 12000 rpm |
| Buffing Motor: | 0, 18 kW |
| Hot Air Blower: | 2 x 2600w |
| Total Air Usage: | 15lt/min |
| Dust Extraction Entrance: | Ø 150 mm |
| Machine Width: | 920 mm |
| Machine Length: | 4000 mm |
| Machine Height: | 1600mm |
| Machine Weight: | 1700kg |
