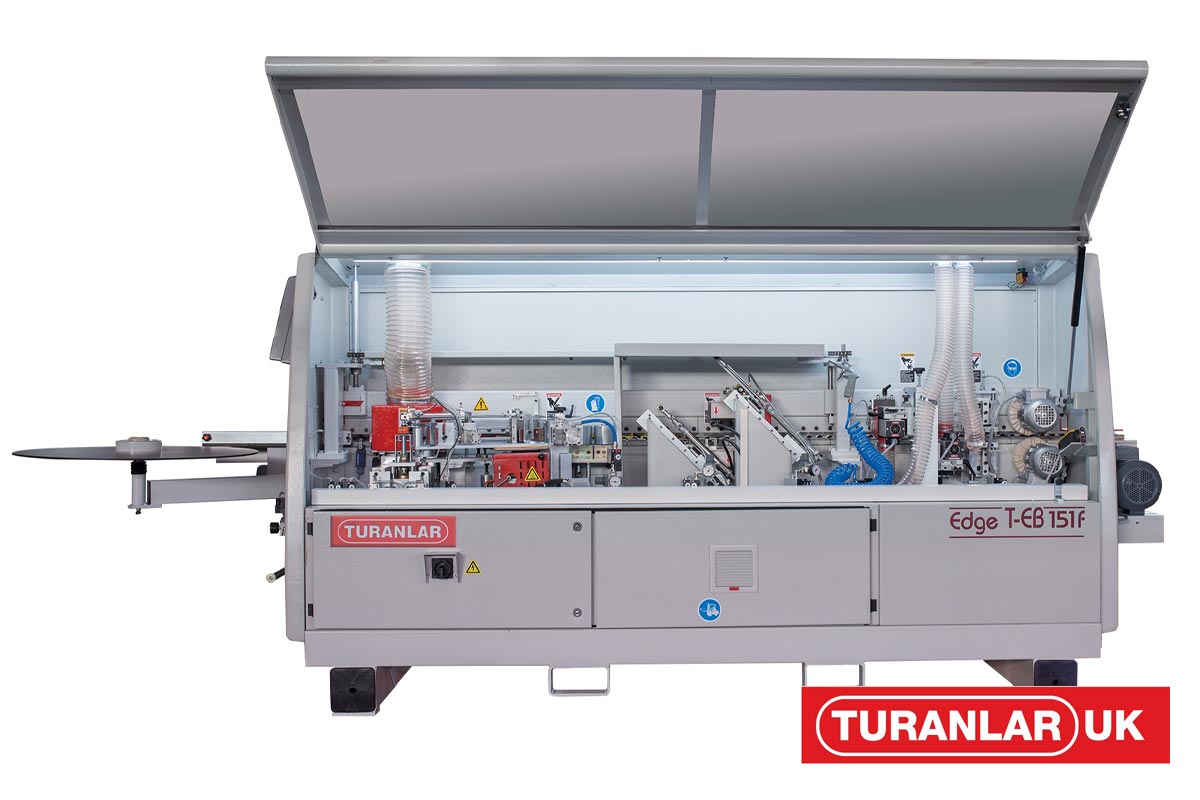

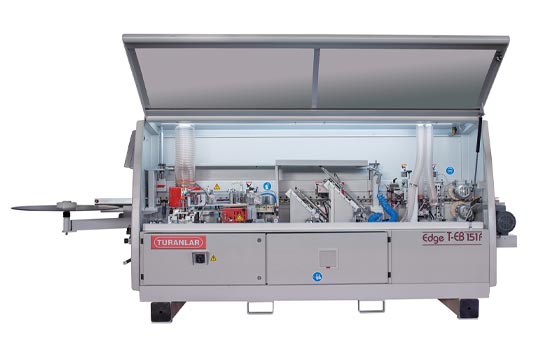

Edgebanding - T-EB-151F
The T-EB 151F is part of the economical series of smaller edgebanders manufactured by Turanlar. The T-EB 151F comes with standard units found on much of this size Edgebander i.e. Touch Screen Panel, End Cutting, Top and Bottom Trimming units, scraping capabilities as well as our standard Teflon coated EVA Hotmelt glue pot system found on the majority of the Turanlar UK Edgebander range. This model also comes with pre-milling units and buffing station as standard not something that you see on this specification of machine. The machine is manufactured to the highest European standards expected within the UK market. Please get in touch if you require more details and pricing.
Product Specification
| Electrical Level: | 415 V |
| Phase: | Three Phase |
| Nominal Current: | 14A |
| Edge Material Thickness: | 0.4 – 3mm |
| Board Thickness: | 10 - 50mm |
| Speed: | 12m/min |
| Total Electrical Power: | 6kW |
| Total Air Pressure: | 6 Bar |
| Total Air Usage: | 80lt/min |
| Working Height: | 870mm |
| End Cutting: | 2 x 0,37kW / 12000rpm |
| Top-Bottom Milling: | 2 x 0,37kW/ 12000rpm |
| Buffing Motor: | 2 x 0,37kW/1500rpm |
| Dust Extraction Diameter: | 150mm |
| Machine Dimensions (WxLxH): | 1000x3100x1700mm |
| Machine Weight: | 970kg |
